TONE SHAPING TOOLS:

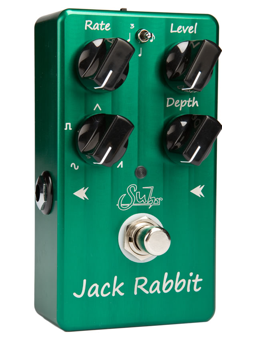

Jack Rabbit features an easy to tweak layout which includes Rate, Level, Waveform, and Depth controls.
Rate: Controls the speed of the tremolo effect, from 1Hz to 20Hz.
Level: Controls the output level of the pedal, from +0dB to +14dB.
Depth: Controls the depth of the tremolo effect.
Waveform: Selects the modulation waveform which includes Sine, Square, Triangle, Reverse Ramp, and Ramp.
SPECIFICATIONS:
Input Impedance: 1M ohm
Output Impedance: 600 ohm
Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
Operating Voltage: 5V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Reverse Battery Protection: yes
Over Voltage Protection: yes
Current Consumption: < 20mA
Estimated Battery Life: 25 – 50 hours continuous use
Dimensions: 2.50" Width x 4.50" Depth x 1.25" Height
Weight: 0.75 pound
FxLink Connector: 1/8" stereo
FxLink max Voltage: 3.3Vdc
Shield -> Tip: Activate on/off
Shield -> Ring: External Tap
ROHS Compliant: Yes
Agency Approvals: N/A
