IN BUONISSIME CONDIZIONI,PERFETTAMENTE FUNZIONANTI,FORNITE CON CAVO DI ALIMENTAZIONE.

Freq. Range (-10 dB): 39 Hz - 18 kHz
Freq. Response (±3 dB): 42 Hz - 17 kHz
Horz. Coverage (-6 dB): 90° Nominal
Vert. Coverage (-6 dB): 60° Nominal
Rated Maximum SPL: 129 dB, 1 m (3.3 ft)
Dimensions (H x W x D): 686 mm x 430 mm x 444 mm (27 in x 17 in x 17.5 in.)
Net Weight: 21 kg (46 lbs.)
LF Driver: Integral frame with one 15½ (380 mm) driver, dual
neodymium magnet, 2½ differential drive voice-coil.
HF Driver: JBL 2418H-1 1½ (throat diameter) compression
driver with 1.75½ diameter titanium diaphragm.
Ferro-fluid cooled.
Amplifier Power LF: 300 watts low-frequency driver impedance.
Amplifier Power HF: 100 watts high-frequency driver impedance.
Input 1 Sensitivity: -44 dBu to -22 dBu for rated output (Mic/Line switch
in MIC position)
-12 dBu to +20 dBu for rated output (Mic/Line switch
In LINE position)
Input 2 & 3 Sensitivity: -18 dBu to +20 dBu for rated output
Output Level: +20 dBu (peak), Loop/Mix switch in MIX position

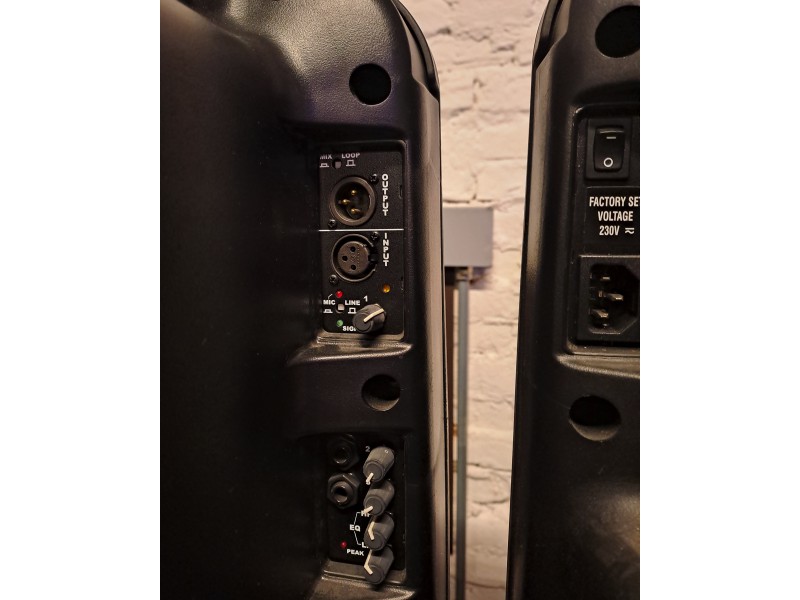

Audio Connectors:
Input 1: XLR/F, balanced
Input 2 & 3: 1/4½ Phone, balanced (TRS)
Crossover Freq: 1.5 kHz
Limiting: Low frequency amplifier controlled by dynamic filter
Loop/Mix Out: XLR/M, balanced
EQ: High Frequency Shelving, ±15 dB 5 kHz
Low Frequency Shelving, ±15 dB 120 Hz.
AC Input: 110 - 230 VAC, 50 - 60 Hz., 175 watts rating per UL,

detachable IEC power cable
