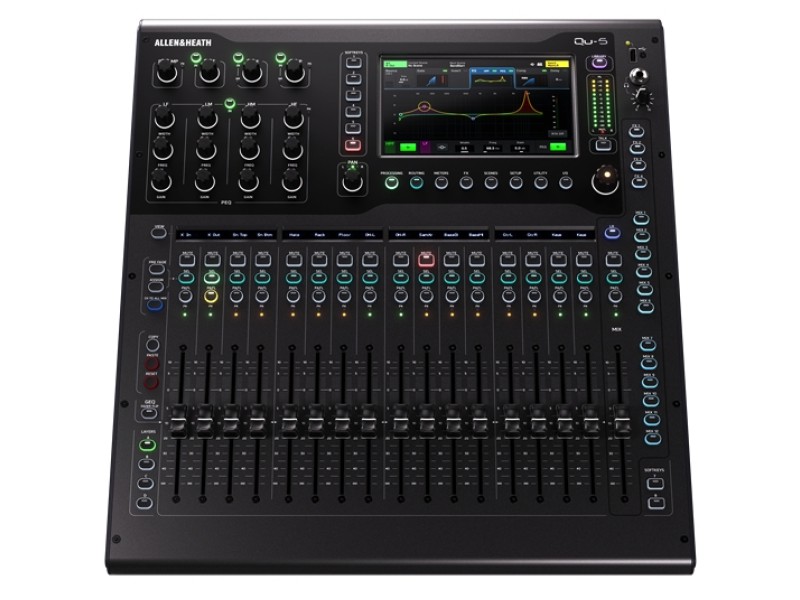

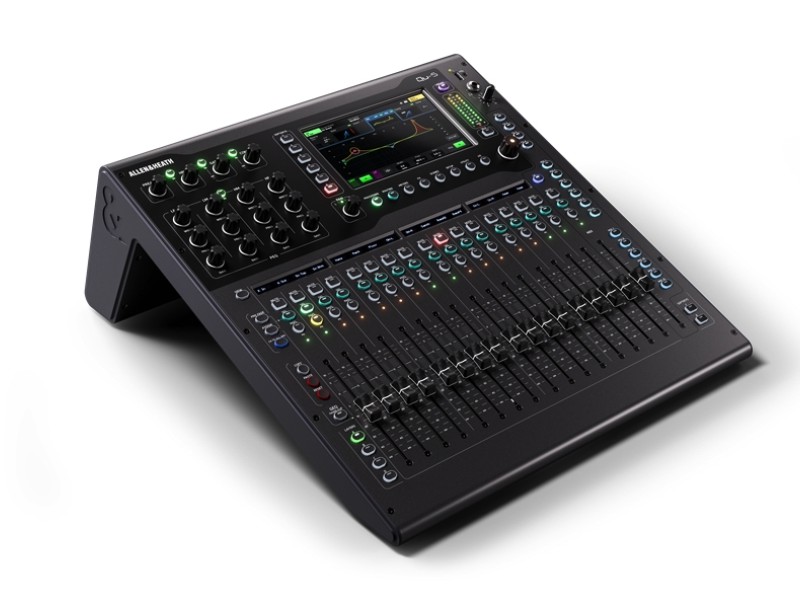

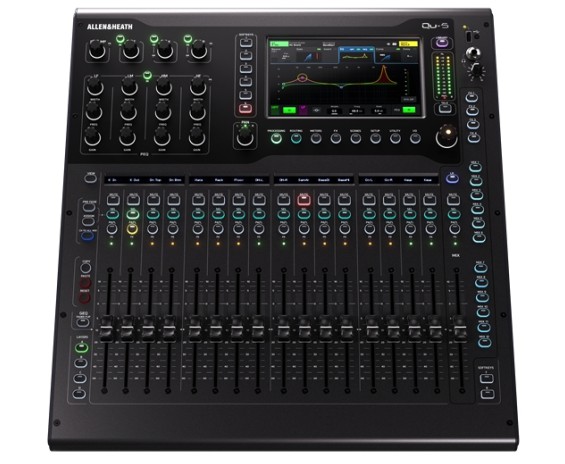

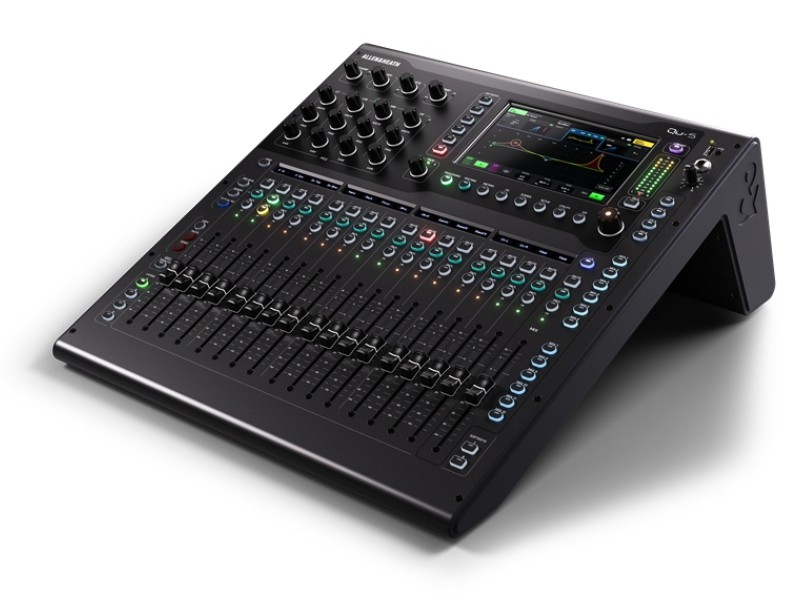

Qu-5 is the compact 96kHz digital mixer with Allen & Heath FPGA architecture, designed to offer power, flexibility and studio-quality audio in a portable format. Equipped with 38 inputs, 12 configurable mixes, 6 FX processors, 32x32 USB-C interface and multitrack recording to SD, it is the perfect choice for touring, theatre, broadcast and professional installations.

Technical features

96kHz digital mixer with Allen & Heath XCVI FPGA engine
32 mono Mic/Line inputs (linkable) + 3 stereo inputs
17 100mm motorized faders on 4 customizable layers
7” capacitive touchscreen with updated user interface
Channel display and chromatic meters on each channel
12 total mixes (6 mono, 6 stereo) + 4 linkable matrices
6 built-in effects with dedicated stereo returns
32-channel Automatic Mic Mixer (AMM) built-in
Gain Assistant and Feedback Assistant included
32x32 USB-C audio interface for PC/Mac recording/playback
SD card slot for multitrack recording/playback (32x32 @48kHz, 16x16 @96kHz)
USB-A port for stereo recording and backup
128x128 SLink expansion with Everything I/O stagebox
8 SoftKeys assignable
Compatible with MixPad app (iOS, Android, Windows, macOS) and Qu-You for personal mixes

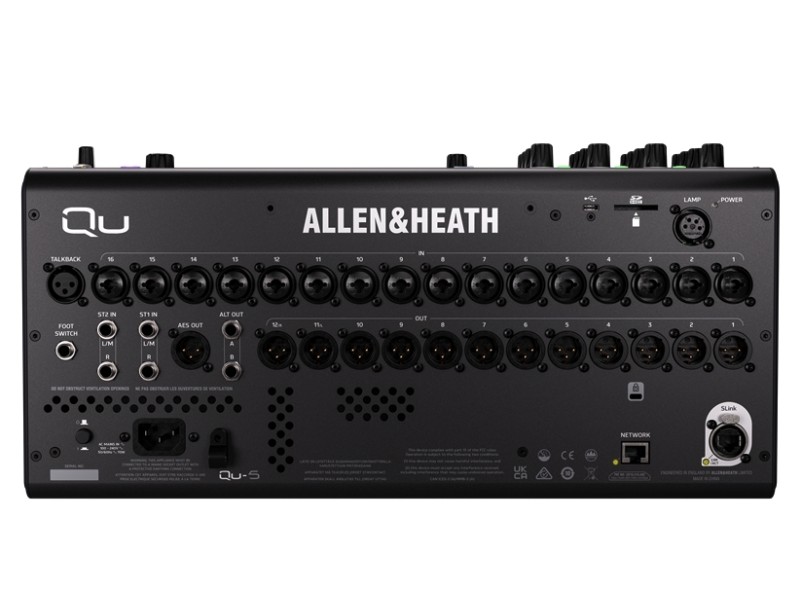

Outputs: 12 XLR, 2 TRS, 1 AES3 digital, stereo headphones, 12V lamp, dual footswitch
Integrated IEC universal power supply
Rackmount format with optional kit
Dimensions: 440.4 × 476 × 213.1 mm
Weight: 10 kg
