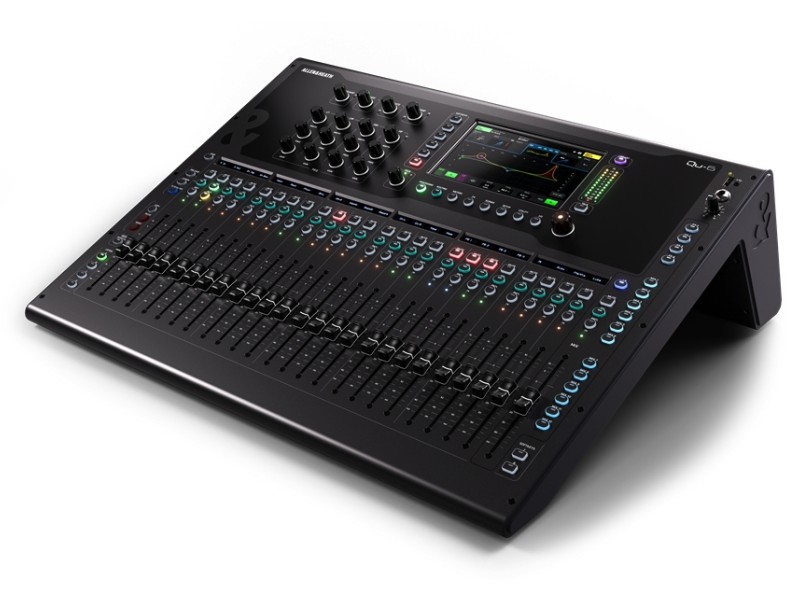

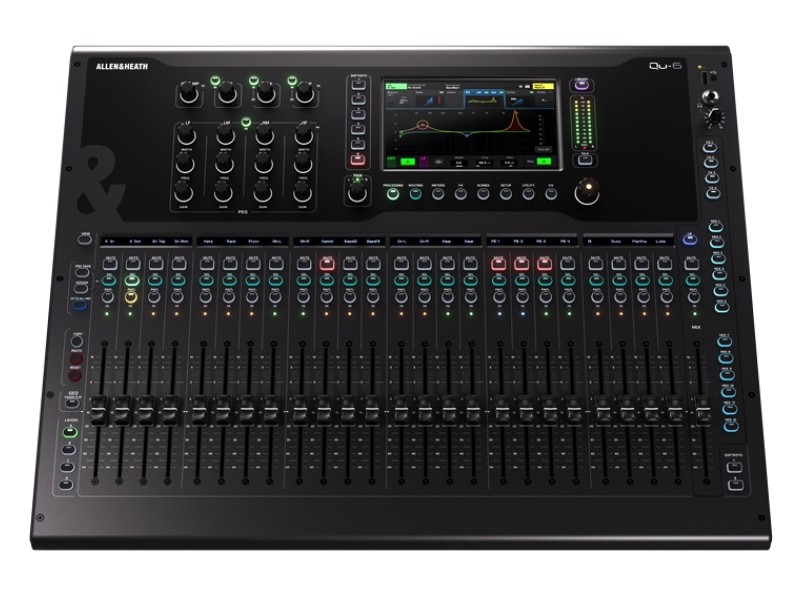

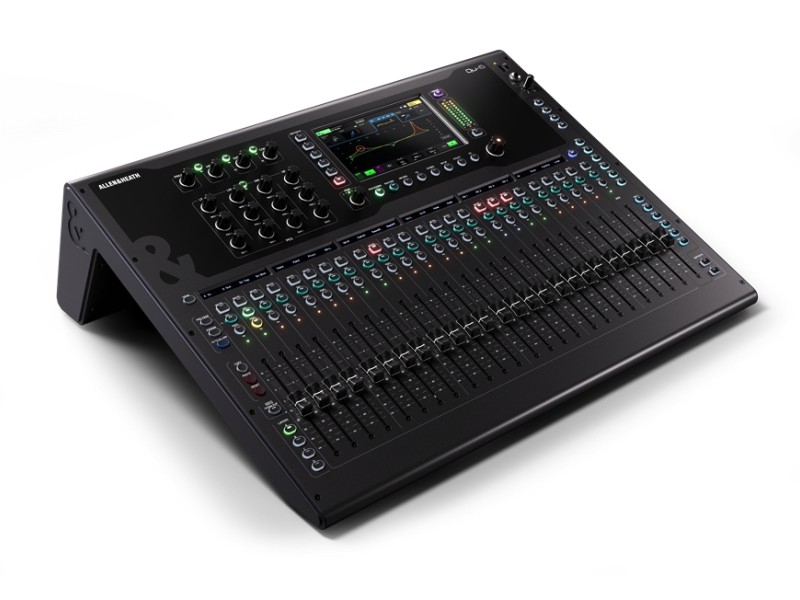

Allen & Heath Qu-6 is a compact and powerful digital mixer designed for sound engineers, installers and AV technicians who need flexibility, sound quality and intuitive control. Equipped with 38 inputs, 25 motorized faders and a 32x32 USB-C audio interface, it integrates advanced functions such as Automatic Mic Mixer, Feedback and Gain Assistant, as well as SLink connectivity for expansion with remote stageboxes.

Technical features

96kHz digital mixer with Allen & Heath XCVI FPGA processor
38 total inputs: 32 linkable mono + 3 stereo
25 100mm motorized faders on 4 customizable layers
24 XLR/Jack combo Mic/Line inputs + 2 stereo TRS + 1 XLR talkback
12 configurable mixes (6 mono, 6 stereo)
4 linkable mono matrices
6 FX engines with dedicated stereo returns
16 XLR + 2 TRS + 1 digital AES3 outputs
32x32 USB-C interface for multichannel recording/playback
SD slot for multitrack (32x32 @48kHz, 16x16 @96kHz)
USB-A port for stereo rec/play and backup
128x128 SLink port for expansion with Everything I/O stagebox (dSnake, GX, DX)
Touchscreen 7” capacitive with modern UI
Channel display with chromatic LED meter
8 assignable SoftKeys
Assistive functions: Gain Assistant, Feedback Assistant
Integrated 32-channel Automatic Mic Mixer
Remote control via MixPad and Qu-You apps (iOS, Android, Windows, macOS)
Connections: stereo headphone output, 12V lamp port, dual footswitch
Integrated universal power supply (IEC connector)
Dimensions: 609 × 476 × 213.1 mm
Weight: 13.5 kg
