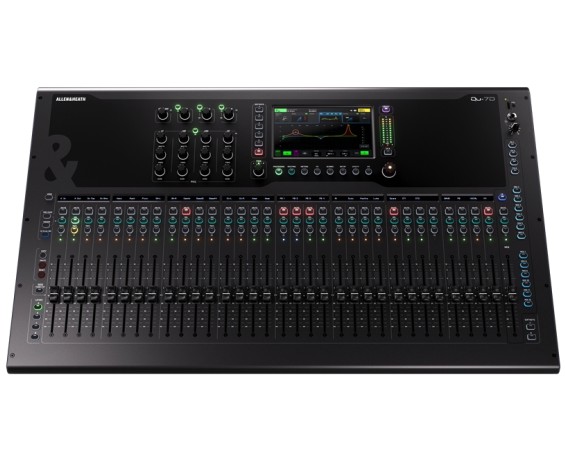

Allen & Heath Qu-7D is the flagship model of the new Qu generation: 96kHz performance, integrated 16x16 Dante interface (48/96kHz) and complete connectivity in a powerful, reliable and intuitive mixer. With 33 motorized faders, 38 inputs, 12 configurable mixes, 6 FX engines and compatibility with Everything I/O stageboxes, it is ideal for broadcast, theaters, AV control rooms and large live events.

Technical features

96kHz XCVI FPGA engine
Integrated 16x16 Dante interface (48/96kHz) with EtherCon connector
38 total inputs: 32 linkable mono + 3 stereo
33 100mm motorized faders on 4 configurable layers
32 XLR/Jack Mic/Line combo inputs
2 TRS stereo inputs + 1 XLR talkback input
12 configurable mixes (6 mono, 6 stereo)
4 linkable mono matrices
6 FX engines with dedicated stereo returns
20 XLR + 2 TRS + 1 AES3 digital stereo outputs
32x32 USB-C interface for multi-channel recording and playback
SD card slot for multi-track recording (32x32 @48kHz, 16x16 @96kHz)
USB-A port for stereo recording and backup
7” capacitive touchscreen with updated interface
Channel display and LED meters chromatic for each input
8 assignable SoftKeys
128x128 SLink port for expansion with Allen & Heath stageboxes (dSnake, DX, GX)
Gain Assistant and Feedback Assistant for quick setup
Integrated 32-channel AMM (Automatic Mic Mixer)
Compatible with Qu-MixPad (sound engineer) and Qu4You (musician monitor) apps
Outputs: stereo headphones, 12V lamp, dual configurable footswitch
Integrated universal power supply (IEC)
Dimensions: 800 × 476 × 213.1 mm
Weight: 16.7 kg
