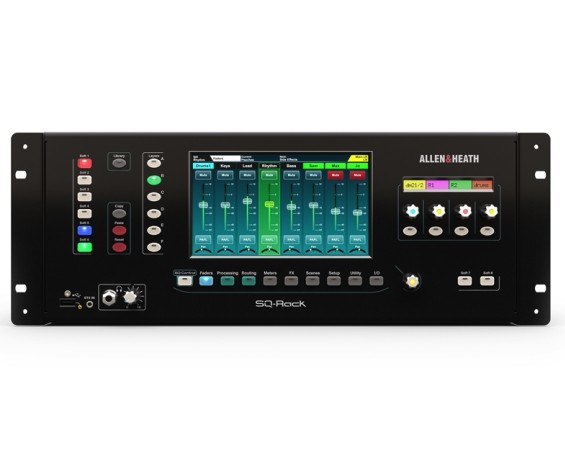

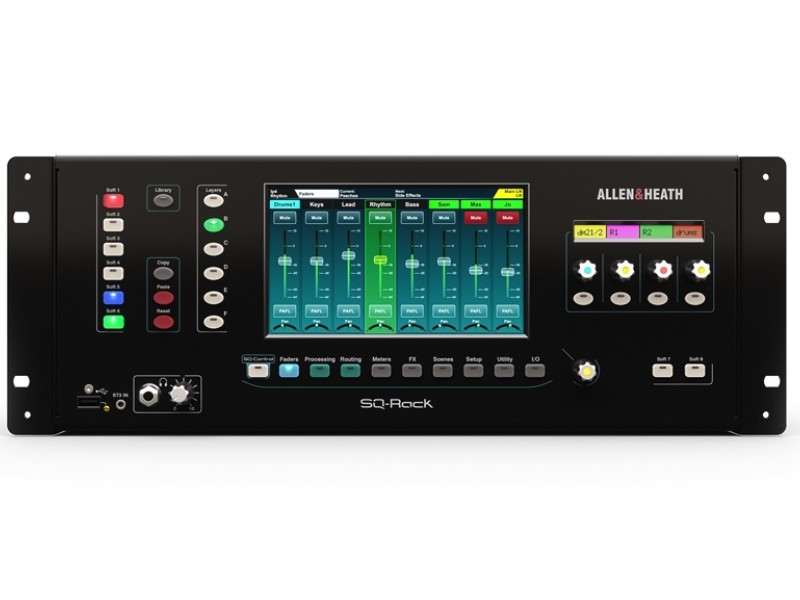

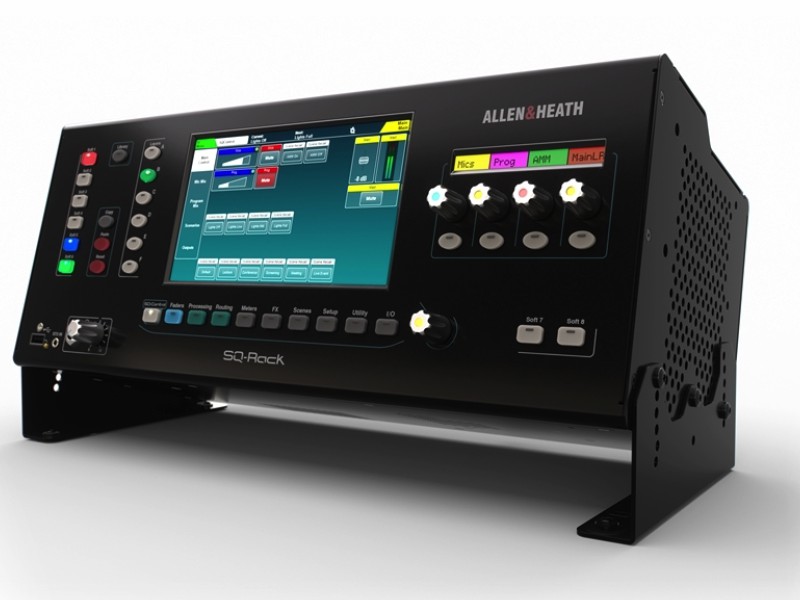

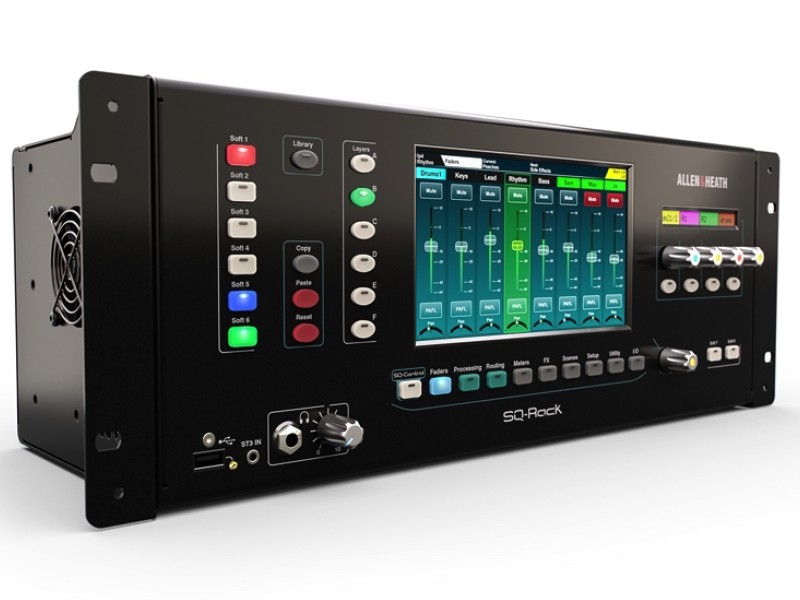

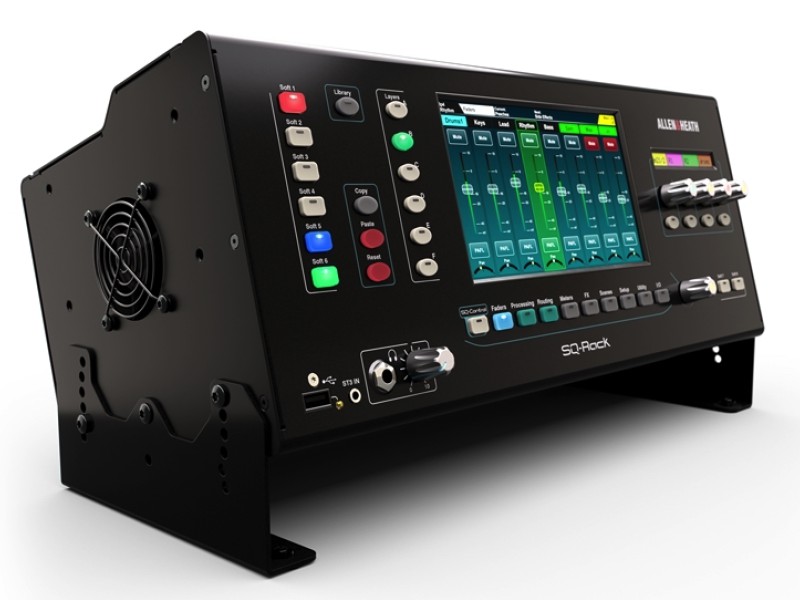

The Allen & Heath SQ Rack digital mixer is a 4U rack unit designed for live, studio and streaming professionals, based on the powerful 96kHz XCVI FPGA engine. With high audio resolution and less than 0.7ms latency, it offers the same power and fidelity as the SQ Series models. It includes 16 mono XLR inputs with mic preamps, 3 stereo inputs and up to 48 expandable input channels. The simplified interface and integration with apps such as SQ MixPad and SQ4You ensure intuitive and customizable control.

Technical Specifications

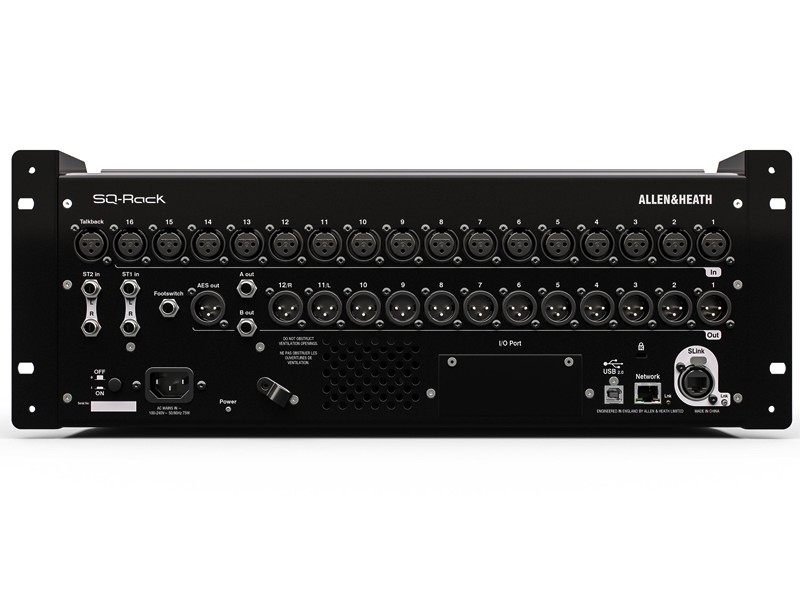

Inputs: Balanced XLR Mic/Line with sensitivity from -60 to +0dBd, pad -20dB, phantom power +48V, THD+N 0.002% -92dBu (0dB gain). Stereo line inputs: TRS ¼” balanced and 3.5mm minijack with sensitivity +4dBu/0dBu, trim +/-24dB. Outputs: XLR balanced, TRS ¼” balanced, AES digital output (96kHz, 2 channels). Maximum output level +22dBu. SLINK: Neutrik EtherCON for DX, dSnake, GigaACE connections. System: 96kHz sampling rate, 112dB dynamic range, latency <0.7ms. Power supply: 100-240V AC, maximum consumption 75W. Dimensions: 430 x 214 x 173mm. Weight: 5.8kg.

Advanced Features
Processing: Each channel features HPF, gate, 4-band parametric EQ, Peak/RMS compressor and delay up to 341ms. Effects: 8 stereo FX engines with RackExtra library for reverbs, delays, choruses and more. DEEP Plug-ins: Advanced compressors and EQs with no added latency. Recording: 32x32 96kHz USB audio interface, DAW compatible, multitrack recording via SQ-Drive. AMM: Automatic Mic Mixer for automatic management of multiple microphones. Expansion: Support for Dante, Waves and MADI cards for additional audio networking options.

Connect and Control
Apps: SQ MixPad for complete remote control; SQ4You for personal management of the monitor mix. Compatibility: Expandable with devices such as AR2412, DX168, and SQ Dante/SLink/Waves cards. Networking Options: AES67 support, SoundGrid and interface with Dante Virtual Soundcard.
