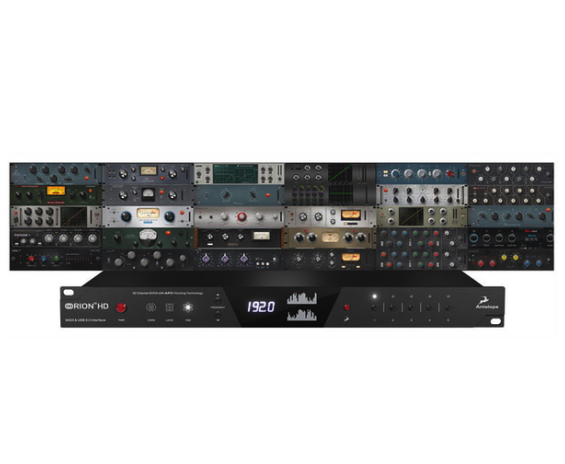

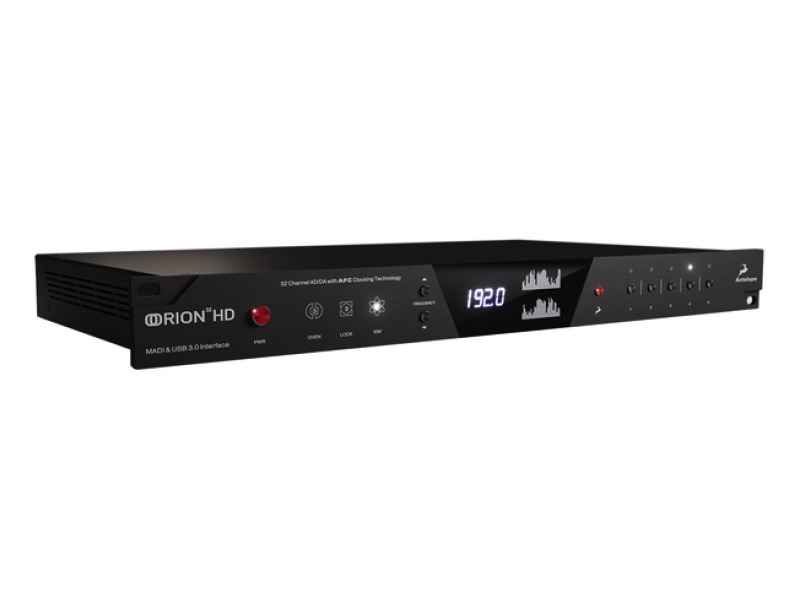

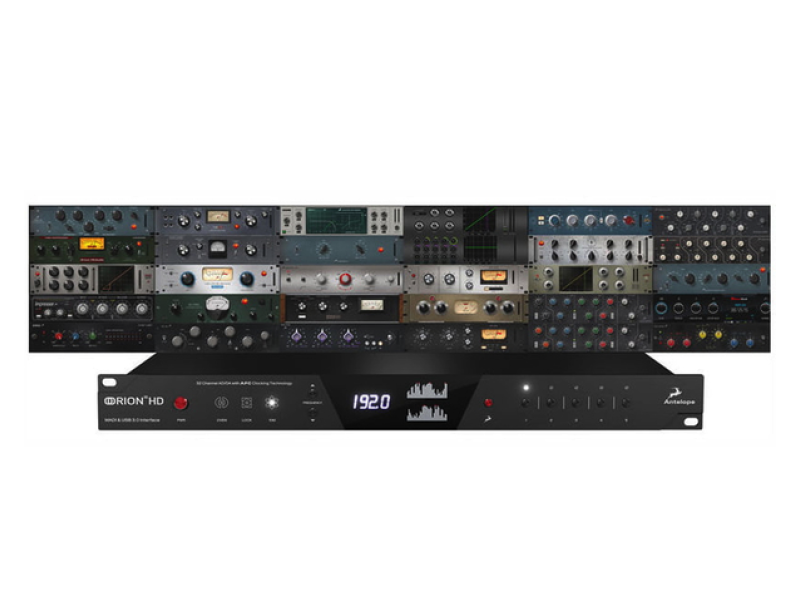

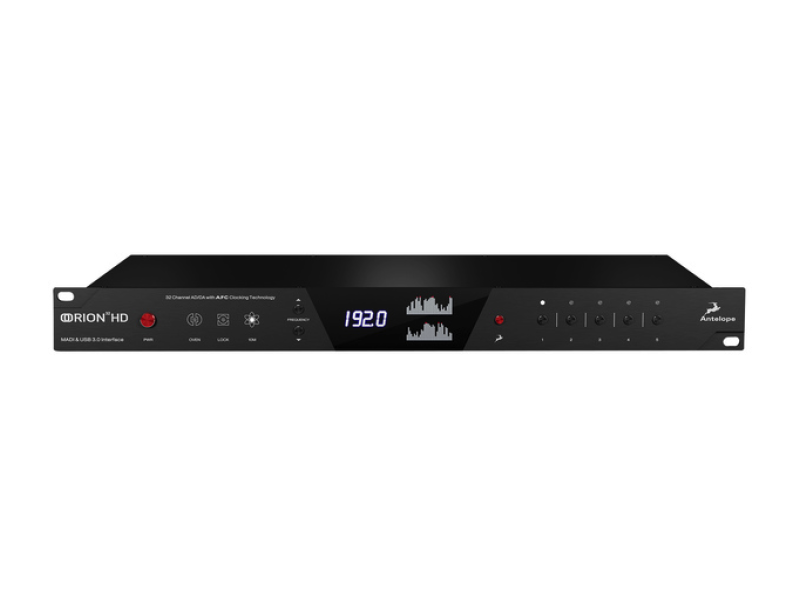

Orion 32 HD | Gen 3

64-Channel HDX / USB Audio Interface
Pro Tools HD and Native compatible
AD/DA converter with 24 bit / 192 kHz with up to 136 dB dynamic range
FPGA for real-time calculation of modelling effects (compressors, equalisers and more)
Antelope 64 Bit 4th Generation Clocking Technology
Controllable by multiple computers via Antelope Networking Control Software
Dimensions: 483 x 44 x 270 mm
Mounting dimensions: 19" / 1 U
Weight: 3.8 kg
Software compatible with Windows 10 and Mac OS X 10.11

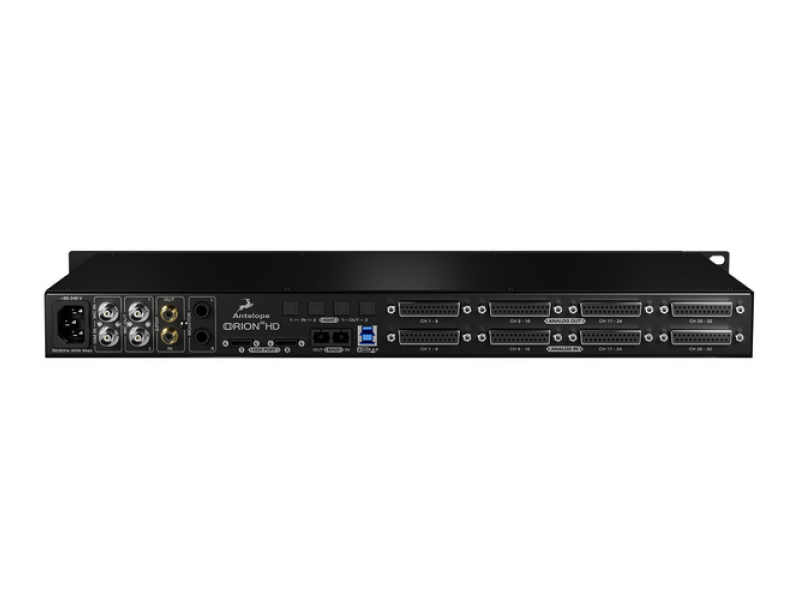

Connectors:
32 Analog line inputs: 4x DB25
32 Analogue line outputs: 4x DB25
Monitor output: 2x 6.3 mm TRS jack
2 ADAT inputs / outputs
MADI input / output
S/P-Dif input / output: RCA
1 Wordclock input: BNC (75 Ohm)
1 10M input for Antelope Atomic Clock: BNC
2 Word clock outputs: BNC (75 Ohm)
2 Mini HDX ports
1 USB 3.0 type B port
