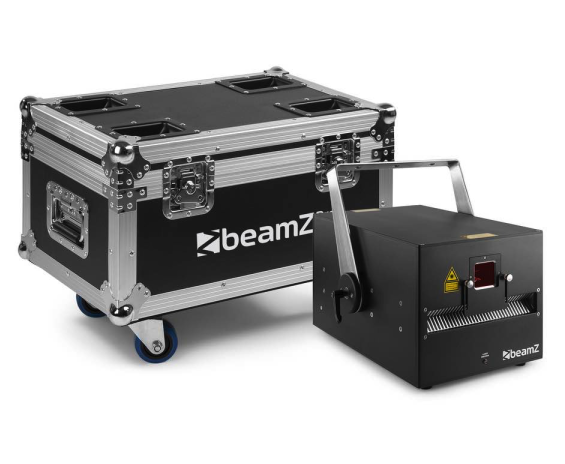

The 10, 20 and 30 watt Phantom Laser series are equipped as standard with the Pangolin FB4 Ethernet controller.
All three models are characterized by a compact design and a guaranteed output power also thanks to the analog modulation which results in a better amplitude and color fade.

All Phantom lasers come standard with:
BeamZ Eazy Calibration & reg; - aligns the laser without opening automatically
Pangolin FB4 controller with Ethernet and SD card
Guaranteed 10W, 20W or 30W output
Dust-proof aluminum housing for minimum maintenance
Dust-resistant aluminum housing for minimal maintenance
Scan Fail Security system
40K @ 8 ° high speed optical scanner system
Silent temperature controlled fan
DMX in / out via 3 and 5 pin XLR
Ilda in / output
X-it / Y-Size inversion
Analog RGB color modulation
Powerconnector input
Input connections RJ45 (CAT), SD, XLR (3-pin), XLR (5-pin)
Output connections XLR (3-pin), XLR (5-pin)
DMX channels 12, 23
DMX connector 3-pin XLR, 5-pin XLR
ILDA Connector DB25
Laser Red 8W @ 638nm
Laser Green 10W @ 525nm
Laser Blue 14W @ 455nm
Scanner system 40kpps @ 8 °
Maximum scanner angle 60 degrees
Guaranteed output (99mW) 30W
Power supply 100-240VAC 50 / 60Hz
Dimensions (L x W x H) 466 x 281 x 257 (without bracket)
Weight 30.00
