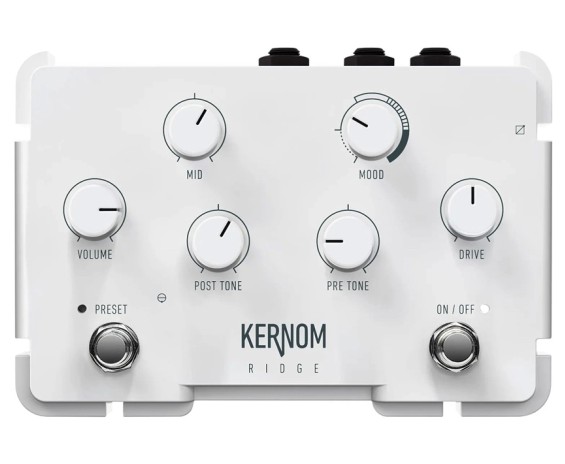

The Kernom Ridge is an “augmented analog” overdrive pedal that allows unprecedented control over the internal behavior of the circuit. Thanks to the MOOD knob and the PRE and POST TONE controls, it offers a wide range of tones, from clean boost to fuzz, with MIDI functionality for advanced integration.

Technical specifications:
Input impedance: 1M Ohm (Guitar Mode), 32k Ohm (Line Mode)
Output impedance: 100 Ohm
Bypass Switching: True Bypass
Dimensions: 11.2 x 16.4 x 5.2 cm
Weight: 850 g
Case: white painted aluminum, thickness 5 mm
Power supply: 9V DC center negative, minimum 250 mA (300 mA recommended)
MIDI connections: mini jack TRS type A or DIN 5-pin via adapter
Compatibility: guitar, bass, synth and studio use
