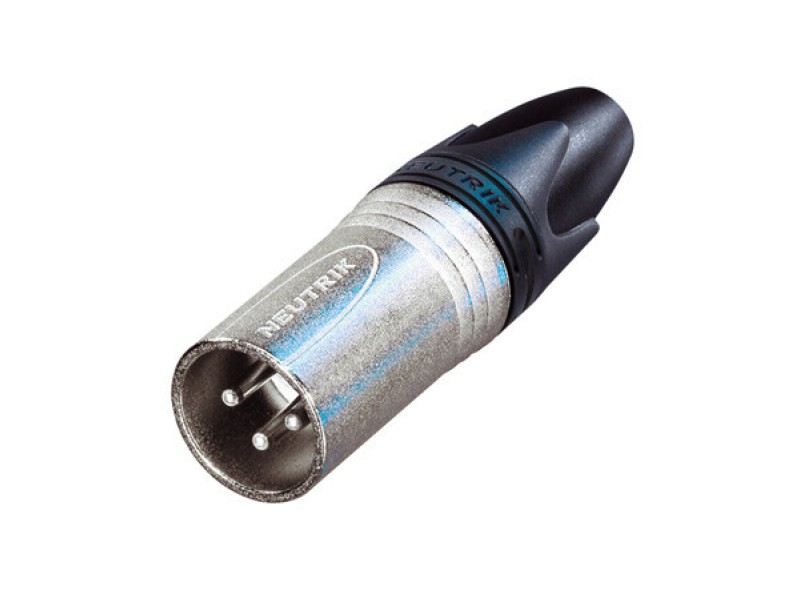

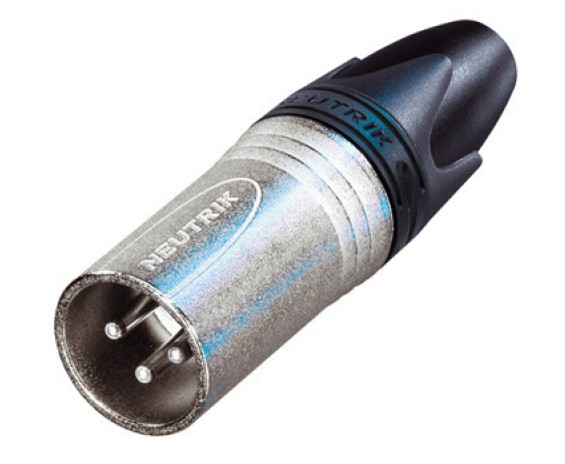

Neutrik NC3MXX

Professional XLR male cable connector, ideal for high-quality audio applications. Rugged die-cast metal construction and snap-lock system.

Technical specifications
Connection type: 3-pole XLR
Gender: Male
Wiring: Solderable contacts
Supported cable diameter: 3.5 – 8.0 mm
Mating cycle: >1000 cycles
Locking system: Latch Lock

Electrical
Contact resistance: ≤ 3 mΩ
Capacitance between contacts: ≤ 4 pF
Insulation resistance: > 10 GΩ (initial)
Dielectric strength: 1.5 kVdc
Rated voltage: < 50 V
Rated current per contact: 16 A

Mechanical
Insertion force: ≤ 20 N
Removal force: ≤ 20 N
Max. cable section: 2.5 mm² / 14 AWG

Materials
Contacts: Brass (CuZn39Pb3) plated in silver (2 µm)
Body: Die-cast zinc (ZnAl4Cu1) with nickel-plated finish
Locking element: Die-cast zinc
Insert: Polyamide (PA66)
Cable gland: Polyurethane
Cable clamp: Polyacetal (POM)

Environment and regulations
Protection class: IP 40
Flame resistance: UL 94 V-0
Operating temperature: -30 °C to +80 °C
Standards compliance: IEC 61076-2-103
Solderability: IEC 68-2-20 compliant
