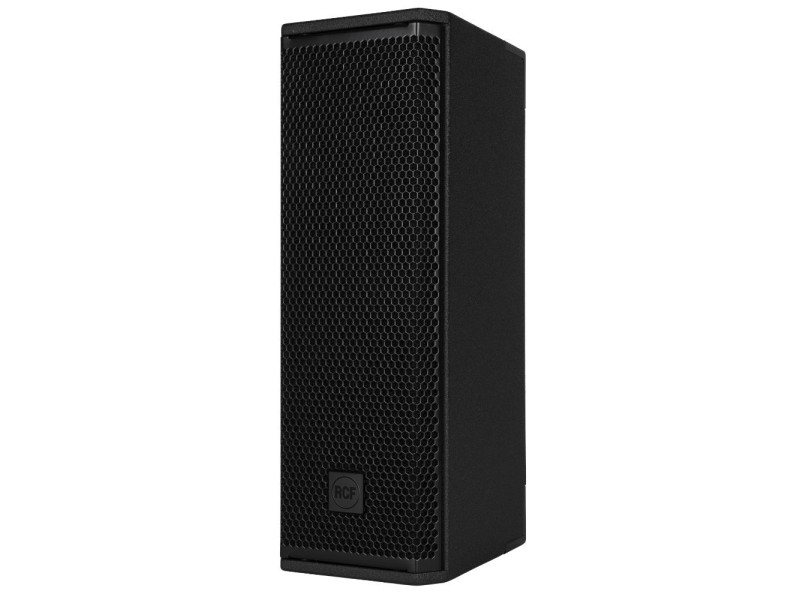

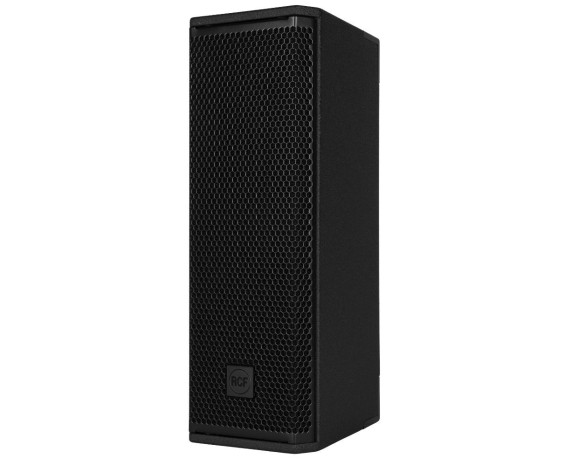

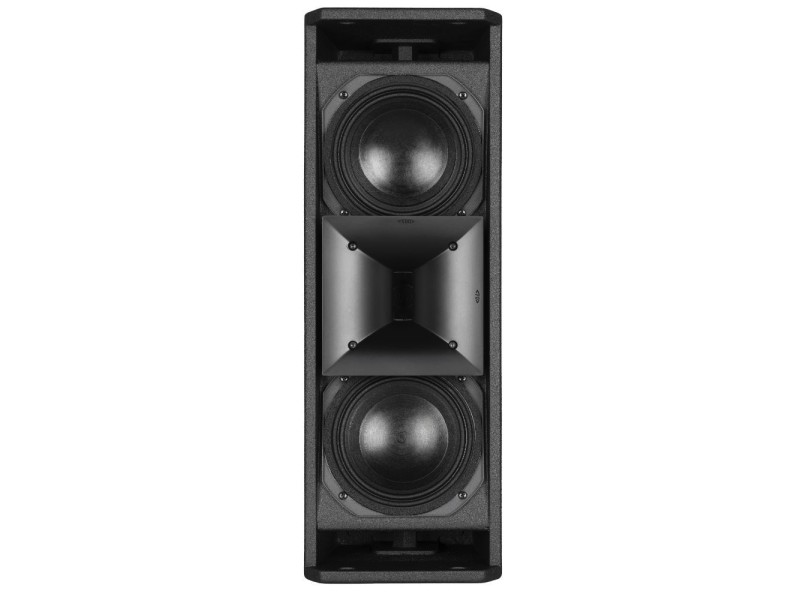

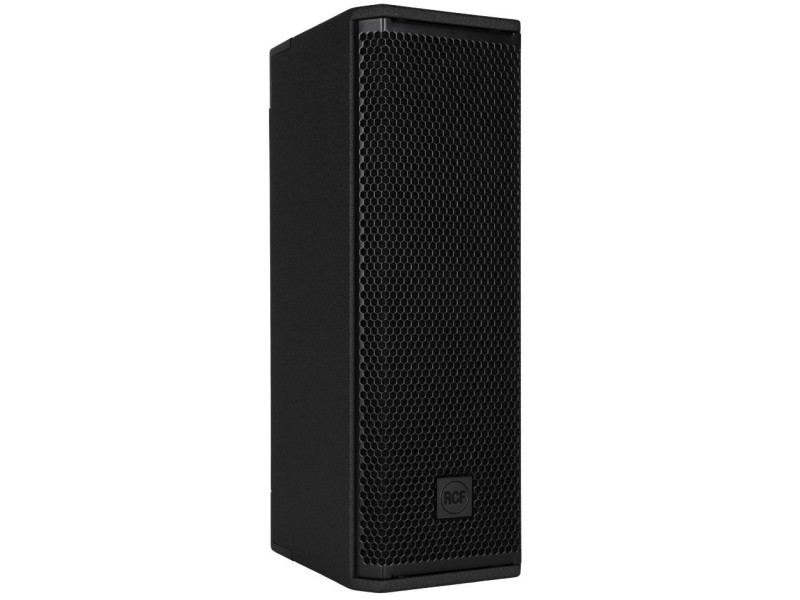

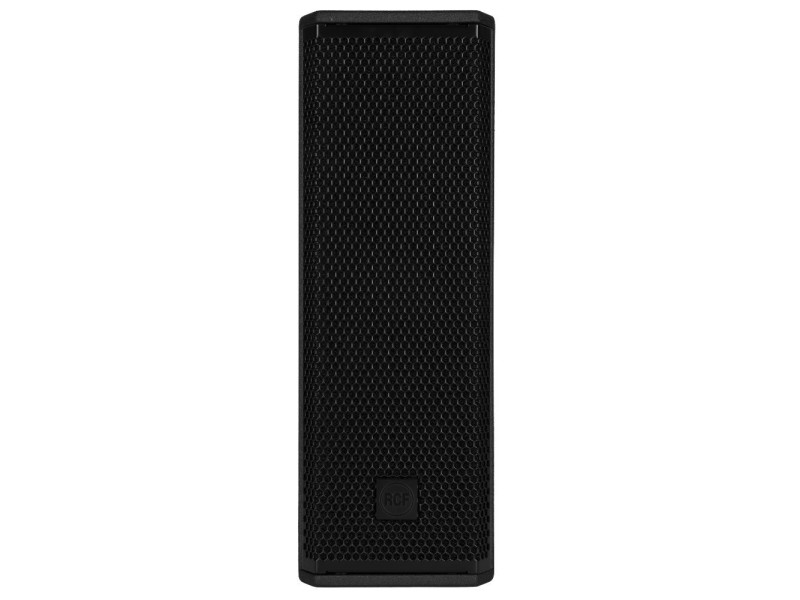

The NXL 14-A is the most compact speaker in the professional NXL series, designed to guarantee definition, power and versatility. Equipped with two 6” woofers and a 1.75” PKX compression driver, it offers uniform sound coverage thanks to the rotatable TRW waveguide. With a power of 2100 W and advanced DSP, it is ideal for live, installations and compact sound systems.

Technical specifications

Max SPL: 128 dB
Amplification: Class D, 2100 W (bi-amp)
Frequency response: 70-20,000 Hz
HF driver: 1.75” PKX neodymium
Woofer: 2x 6” high-power neodymium
Waveguide: Rotatable TRW, 100° x 70° coverage
DSP: FiRPHASE and Bass Motion Control
Inputs: Balanced XLR
Outputs: Balanced XLR Link
DSP control: 3 presets (Linear, Boost, Stage)
Cabinet: Multilayer with polyurea coating
Colour: Black/White
Mounting: Hanging, pole, truss, wall or ceiling
Power connector: Waterproof powerCON TRUE1 TOP
Dimensions: 567 x 197 x 270 mm
Weight: 12.8 kg
