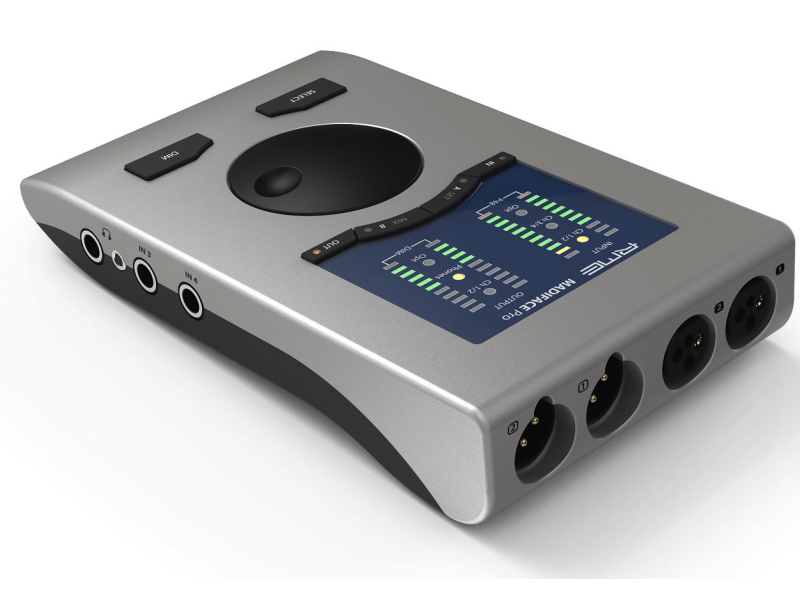

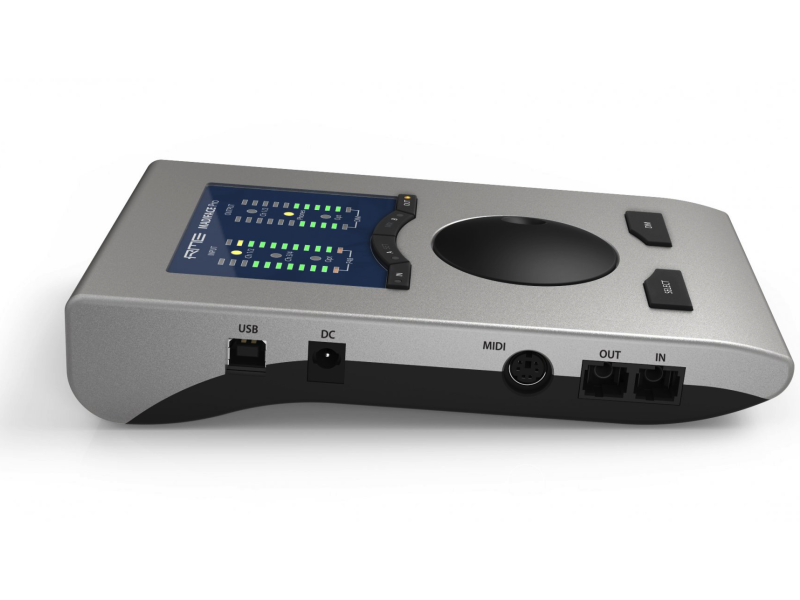

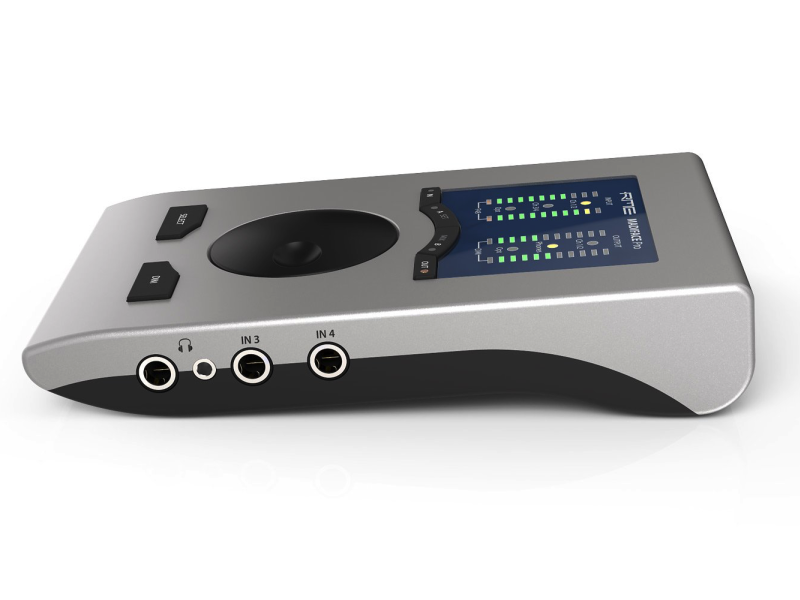

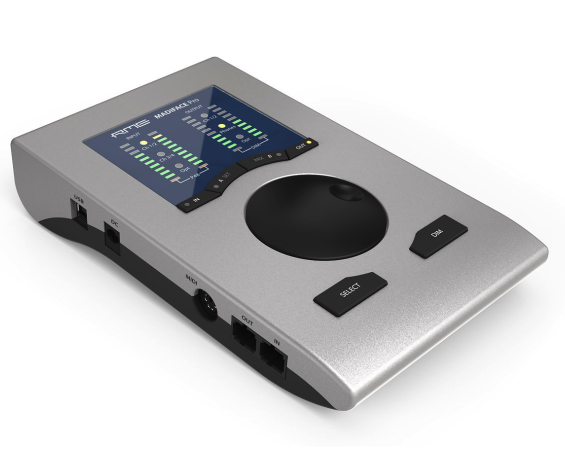

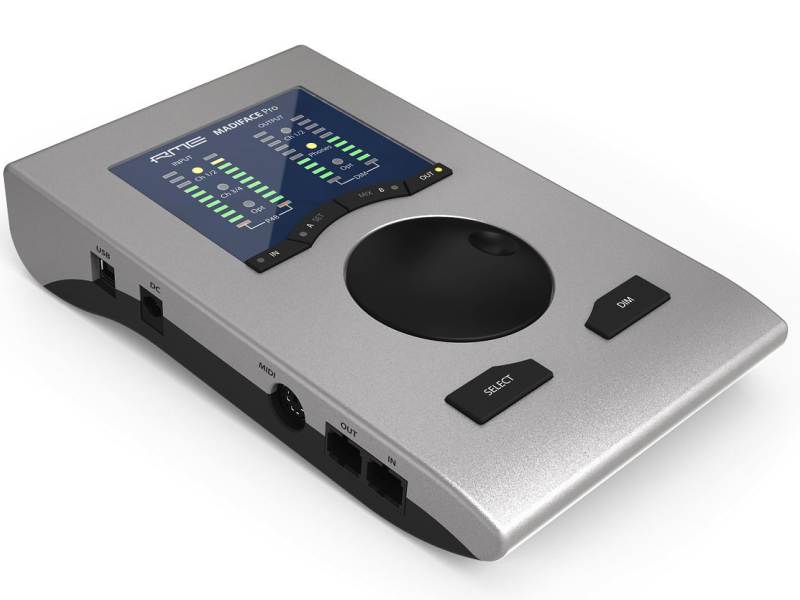

Compact audio interface with MADI connection.

Based on the chassis of the Babyface Pro, with the difference that the MADI interface is supplied instead of the 8-channel ADAT I / O connections.

Housing obtained from an aluminum block
Intuitive and efficient user interface
Threaded support for microphone stand on the bottom
All settings can be changed in real time
Buffer size / latencies from 32 to 8192 selectable samples
64 channels via optical MADI
Clock slave and master mode
automatic and intelligent clock / master-slave control
SteadyClock: Jitter-immune, super-stable digital clock
DDS technology for free setting of the sample rate
SyncAlign ensures sample aligned and channels never interchange
SyncCheck tests and reports the synchronization status of the input signals
TotalMix for latency-free submixing and perfect ASIO Direct Monitoring
TotalMix: 9248 mixer channels with 46-bit internal resolution
TotalMix FX: 3-band EQ, Low Cut, Reverb, Echo
1x MIDI I / O, 16 high-speed MIDI channels
1x virtual MIDI port on MADI
2x digitally controlled microphone inputs in reference quality
2x Balanced line outputs, + 19dBu level
1x Headphone output with separate driver stages for high and low impedance headphones
DIGICheck DSP hardware level meter, peak calculation and RMS
Dimensions: 108 x H35 x 181mm
Weight: 0.680kg
